Slip on Flanges

Prime Tube Impex is India's leading manufacturer, supplier, stockist & exporter of Slip on Flanges in India. We supply ANSI B16.5 slip-on flanges in various sizes, standards, materials, grades, class, pressure, face type and other specifications as per clients requirements. These slip-on flanges are manufactured by using top quality raw materials and under the supervision of skilled engineers. Our quality control inspectors do various quality tests to make sure the product is quality approved and defect free before delivering these slip-on flanges to our customers. We supply ANSI B16.5 slip on flanges, ASME B16.47 SORF Flanges, ANSI B16.47 Series A & B Slip on Flanges, ANSI B16.48 SOFF Flanges, EN-1092 SO Flanges, DIN Slip on Flanges, BS4504 Slip on Flanges worldwide.

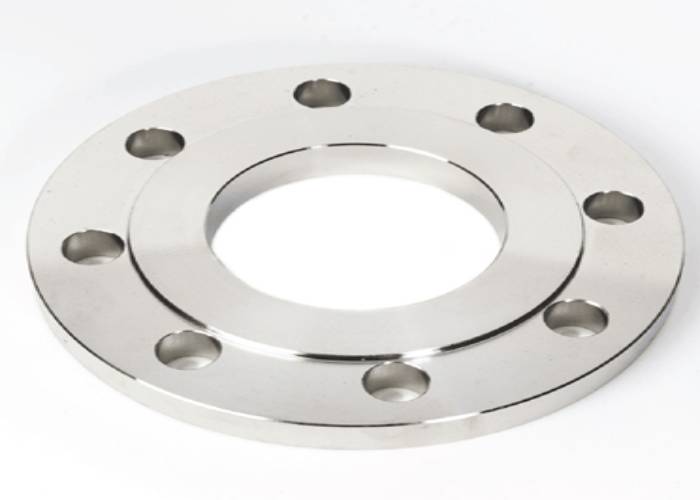

Slip on Flanges also known as SO Flanges are slipped over the pipe. They are used to connect pipes through a fillet weld at the base and top of the flange. These flanges inner diameter is little bigger than the pipe's outer diameter. It is used to insert a pipe into the inner hole of the flange with fabrication. Slip on flanges can be used with raised or flat face. These slip-on flanges are manufactured in various national and international standards such as ASTM, ASME, DIN, NFA, JIS, IBR. Our slip-on flanges have excellent corrosion resistance and good strength. Our slip-on flanges are available in various materials like stainless steel, carbon steel, alloy steel, inconel, incoloy, monel, hastelloy, nickel alloy, copper nickel, etc.

Slip on Flanges are leak proof and it requires low maintenance cost. These are widely used in many industries & applications like Oil and Gas, Petrochemical, Pharmaceuticals Industry, Power Generation, Shipbuilding, Nuclear Power Plants, Fertilizers Plants, Chemicals Industry, Water and Sewage Desalination Plants, Pulp and Paper Industry, etc.

Prime Tube Impex is your one-stop source for Slip on Flanges. Get in touch with us today with your requirements. Our experts will get back to you with the best quote for your requirement for Slip on Flanges.

Incoloy Slip on Flanges Stockist, Monel SORF Flanges, Hastelloy SO Flanges, Copper Nickel Slip On Flanges, Manufacturer, Best Prices For Slip on Flanges, Nickel Alloy Slip on Flanges Dealer, Industrial Slip on Flanges Supplier in India.

Slip on Flanges Specifications:

Size: ½” (15 NB) to 48″ (1200NB)
Class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
Standards: ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN
Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Coating/Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized

Grade Specifications of Slip on Flanges

Stainless Steel Slip On Raised Face Flanges
Standards: ASTM A182 , A240
Grades: F 304, 304L, 304H, 316, 316Ti, 316H, 316L, 316LN, 309S, 309H, 310S, 310H,317, 317L, 321, 321H, 347, 347H, 201, 202, 904L
Carbon Steel Slip On Raised Face Flanges
Standards: ASTM A105
Grades: Gr. F42,46,52,56,60,65,70
Alloy Steel Slip On Raised Face Flanges
Standards: ASTM A182
Grades: F1,F5,F9,F11,F22,F91
Nickel Alloy Steel Slip On Raised Face Flanges
Standards: ASTM SB564, SB160, SB472, SB162
Grades: Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020),
Copper Alloy Slip On Raised Face Flanges
Standards: ASTM SB 61 , SB62 , SB151 , SB152
Grades: UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200,
Duplex Steel Slip-On Raised Face Flanges
Standards: ASTM A182, A240
Grades: UNS F 44, F 45, F51, F 53, F 55, F 60, F 61

Slip on Flanges - Types


Industry Standard Class 75 Slip-On Flanges
Industry Standard Class 150 Slip-On Flanges
Industry Standard Class 175 Slip-On Flanges
Industry Standard Class 250 Slip-On Flanges
Industry Standard Class 300 Slip-On Flanges
Industry Standard Class 350 Slip-On Flanges
Plate Slip-On Flanges
Ring Type Joint Slip-On Flanges
Drawing Slip-On Flanges
Square Slip-On Flanges
Nipo Slip-On Flanges
Reducing Slip-On Flanges
Forged Slip-On Flanges
Stainless Steel Slip-On Flanges
Industry Standard Class 125 Light-weight Slip-On Flanges
Industry Standard Class 125/150 Slip-On Flanges
