Prime Tube Impex is India's topmost manufacturer, supplier, stockist & exporter of Lap Joint Flanges in India. We supply ANSI B16.5 Lap Joint flanges in various sizes, standards, materials, grades, class, pressure, face type and other specifications as per clients requirements. These Lap Joint flanges are manufactured by using the best quality raw materials and under the supervision of experienced engineers. Our quality control inspectors do various quality tests to make sure the product is quality approved and defect free before delivering these Lap Joint flanges to our customers. We supply ANSI B16.5 Lap Joint Flanges, ASME B16.47 Lap Joint Flanges, ANSI B16.47 Series A & B Lapped Joint Flanges, ANSI B16.48 Lap Joint Flanges, EN-1092 Lapped Joint Flanges, DIN Lap Joint Flanges, BS4504 Lap Joint Flanges worldwide.

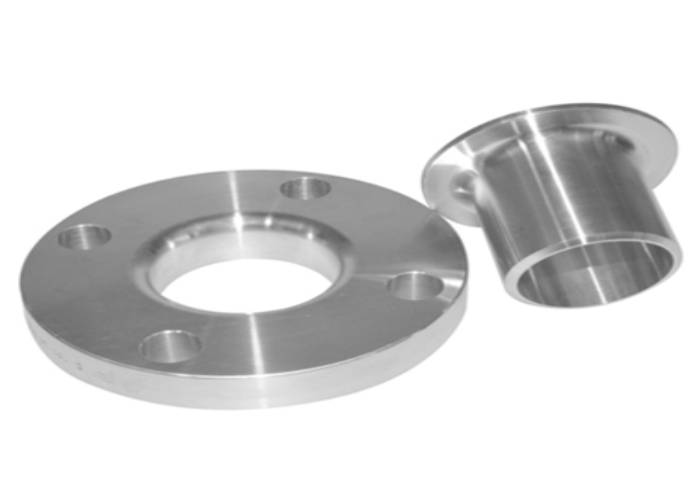

A lap joint flange is a two-component assembly, with a stub end that has a lap-joint ring flange placed over it. The stub end is then butt welded to the pipe, and the flange ring can be rotated to align with the mating flange. This type of flange connection is useful for large or hard to adjust flanges. Piping systems where frequent dismantling is required for inspection or routine maintenance lapped joint flange and stub end assembly are mostly used. The lap joint flanges are used in carbon or low alloy steel piping systems. These Lap Joint flanges are manufactured in various national and international standards such as ASTM, ASME, DIN, NFA, JIS, IBR. Our Lap Joint flanges have good corrosion resistance and strength. Our Lap Joint flanges are available in various materials like stainless steel, carbon steel, alloy steel, inconel, incoloy, monel, hastelloy, nickel alloy, copper nickel, etc.

We supply Lap Joint flanges around the globe. These are widely used in many industries & applications like Oil and Gas, Petrochemical, Pharmaceuticals Industry, Power Generation, Shipbuilding, Nuclear Power Plants, Fertilizers Plants, Chemicals Industry, Water and Sewage Desalination Plants, Pulp and Paper Industry, etc.

Prime Tube Impex is your one-stop source for Lap Joint Flanges. Get in touch with us today with your requirements. Our experts will get back to you with the best quote for your requirement for Lap Joint Flanges.

Incoloy Lap Joint Flanges Stockist, Hastelloy Lap Joint Flanges, Copper Nickel Lap Joint Flanges, Manufacturer, Best Prices For Lap Joint Flanges, Nickel Alloy Lap Joint Flanges Dealer, Industrial Lap Joint Flanges Supplier in India.

Lap Joint Flanges Specifications:

Size:	½” (15 NB) to 48″ (1200NB)
Class:	150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
Standards:	ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN:	DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S:	BS4504 , BS4504, BS1560, BS10
Flange Face Type:	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Coating/Surface Treatment:	Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized

Grade Specifications of Lap Joint Flanges

Stainless Steel Lap Joint Raised Face Flanges

Standards:	ASTM A182 , A240
Grades:	F 304, 304L, 304H, 316, 316Ti, 316H, 316L, 316LN, 309S, 309H, 310S, 310H,317, 317L, 321, 321H, 347, 347H, 201, 202, 904L

Carbon Steel Lap Joint Raised Face Flanges

Standards:	ASTM A105
Grades:	Gr. F42,46,52,56,60,65,70

Alloy Steel Lap Joint Raised Face Flanges

Standards:	ASTM A182
Grades:	F1,F5,F9,F11,F22,F91

Nickel Alloy Steel Lap Joint Raised Face Flanges

Standards:	ASTM SB564, SB160, SB472, SB162
Grades:	Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020),

Copper Alloy Lap Joint Raised Face Flanges

Standards:	ASTM SB 61 , SB62 , SB151 , SB152
Grades:	UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200,

Duplex Steel Lap Joint Raised Face Flanges

Standards:	ASTM A182, A240
Grades:	UNS F 44, F 45, F51, F 53, F 55, F 60, F 61

Lap Joint Flanges - Types

---
