180 Degree Long Radius Elbow Buttweld Fittings Manufacturer, ASTM A403 Buttweld 180 Deg Long Radius Elbow Pipe Fittings Supplier, ANSI B16.9 Buttweld 180 Deg. Long Radius Elbow Stockist, Duplex Steel 2205 Buttweld 180 Degree Long Radius Elbow Exporter, Super Duplex Steel 2507 180 Degree Long Radius Elbow Buttweld Fitting Trader, Stainless Steel 904L Buttweld 180 Degree Long Radius Elbow Distributor in Mumbai, India

Alloy 20 Buttweld 180 Degree Long Radius Elbow Supplier, Stainless Steel 180 Degree Long Radius Elbow Pipe Fittings, IBR 180 Degree Long Radius Elbow Buttweld Pipe Fittings, Carbon Steel 180 Degree Long Radius Elbow Buttweld Fittings, Alloy Steel Buttweld 180 Deg Long Radius Elbow Dealer, Inconel 180 Deg Long Radius Elbow Buttweld Fittings Manufacturer in India.

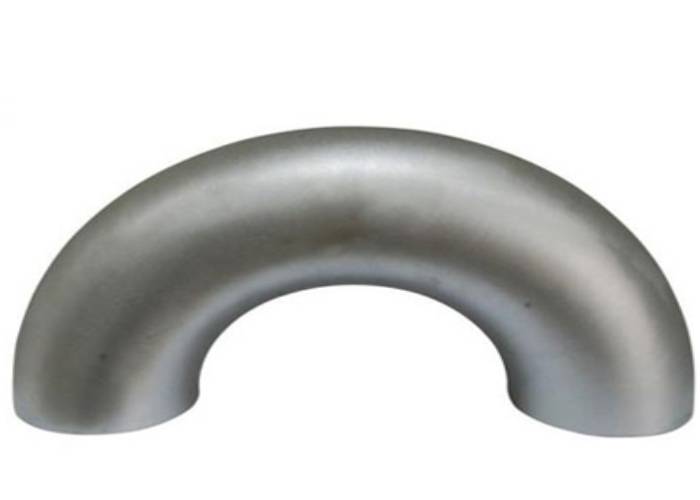

Prime Tube Impex is India's reliable manufacturer, supplier, stockist & exporter of 180 Degree Long Radius Elbow Buttweld Fittings in India. We supply Buttweld 180 Degree Long Radius Elbow in various sizes, thicknesses, bending radius, standards, materials, grades and other specifications as per customer requirements. These Buttweld 180 Deg Long Radius Elbows are manufactured under the supervision of highly experienced engineers and by using finest quality raw materials. Before delivering 180 Degree Long Radius Elbow to our customers worldwide, we do many quality tests to ensure the product is defect free and quality approved.

Elbows are pipe fittings that are used to connect two pipes to change the flow of direction in piping at the angle required. They are also called bend. These 180 Degree Long Radius Elbow Buttweld Fittings are manufactured in various national and international standards such as ASTM, ASME, DIN, NFA, JIS, IBR. These Buttweld 180 Degree Long Radius Elbow have excellent corrosion resistance, high mechanical strength, and are dimensionally accurate. Our Buttweld 180 Degree Long Radius Elbow are available in various materials like duplex and super duplex steel, stainless steel, alloy 20, carbon steel, alloy steel, inconel, incoloy, monel, hastelloy, nickel alloy, copper nickel, etc.

180 Degree Long Radius Elbow Buttweld Fittings are widely used in many industries & applications like Oil and Gas, Petrochemical, Pharmaceuticals Industry, Power Generation, Shipbuilding, Nuclear Power Plants, Fertilizers Plants, Chemicals Industry, Water and Sewage Desalination Plants, Pulp and Paper Industry, etc.

Prime Tube Impex is your one-stop source for 180 Degree Long Radius Elbow Buttweld Fittings. Get in touch with us today with your requirements. Our experts will get back to you with the best quote for your requirement for Buttwled 180 Degree Long Radius Elbow.

Incoloy 180 Degree Long Radius Elbow Buttweld Fittings Stockist, Monel Buttweld 180 Degree Long Radius Radius Elbow, Hastelloy Buttweld 180 Degree Long Radius Elbow, Copper Nickel Buttweld 180 Degree Long Radius Elbow, Buttweld 180 Degree Long Radius Elbow Manufacturer, 180 Degree Long Radius Elbow Buttweld Fittings at Best Prices, Nickel Alloy Buttweld 180 Deg Long Radius Elbow Dealer, Industrial Buttweld 180 Degree Long Radius Elbow Supplier in India.

180 Degree Long Radius Elbow Buttweld Fittings Specifications:

Standards:	ANSI – B 16.9 ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’ API 590-605 ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings” ASME B16.25 – ‘Buttwelding Ends’ ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’ MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’
Schedule:	Sch 5 TO Sch XXS.
Size:	1/2″NB TO 48″NB IN / Diameters – from 21.3 to 711 mm, Wall Thickness – from 2 to 40 mm
Materials:	IBR, Stainless Steel,Duplex Steel, Super Duplex Steel, Carbon Steel, Alloy Steel, High Nickel Alloys, Alloy 20, Cupro Nickel
Type:	Butt Weld (BW) / Welded / ERW / Fabricated
Thickness:	Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension:	ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

---

180 Degree Long Radius Elbow Buttweld Fittings Material & Grades:

Stainless Steel Buttweld 180 Degree Long Radius Elbow

Standards:	ASTM A403 WP316/316L, ASTM A403 SA / A 774
Grades:	WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

Duplex & Super Duplex Steel Buttweld 180 Degree Long Radius Elbow

Standards:	ASTM A 815, ASME SA 815
Grades:	UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462

Carbon Steel Buttweld 180 Degree Long Radius Elbow

Standards:	ASTM A234, ASME SA234
Grades:	WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Buttweld 180 Degree Long Radius Elbow

Standards:	ASTM A420
Grades:	WPL3, A420 WPL6

Alloy Steel Buttweld 180 Degree Long Radius Elbow

Standards:	ASTM / ASME A/SA 234
Grades:	Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

High Nickel Alloy Buttweld 180 Degree Long Radius Elbow

Standards:	ASTM B336, ASME SB336
Grades:	High Nickel 200 (UNS No. No2200), High Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Cupro-Nickel 90/10, CuNi10Fe1Mn, CuNi30Mn1Fe.

180 Degree Long Radius Elbow Buttweld Fittings - Types

---
